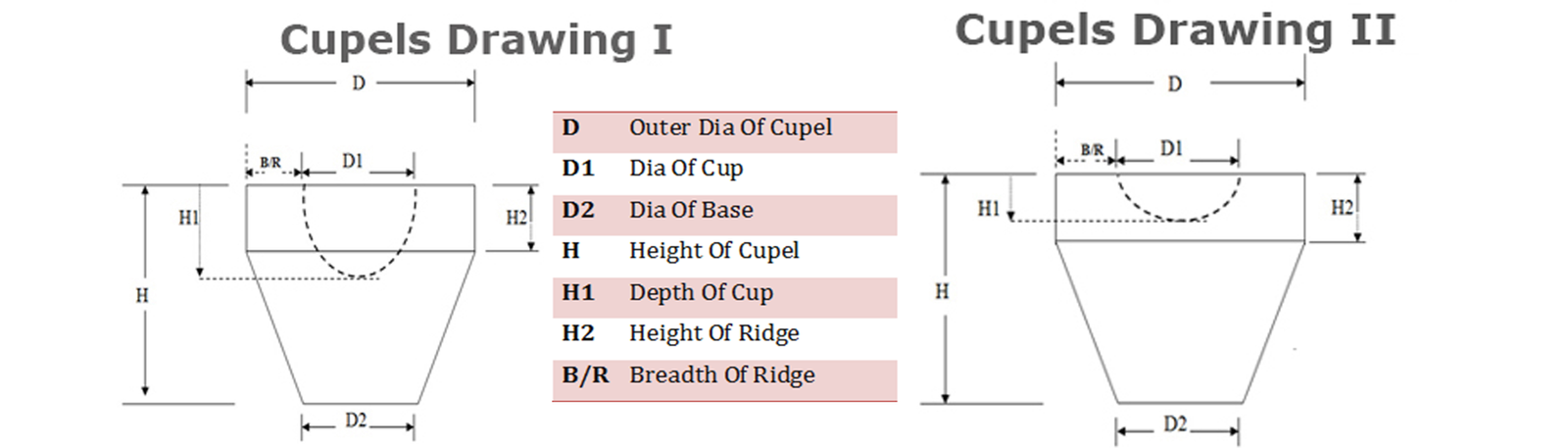

Magnesia Cupels Dimensions Data in (‘mm’)
Size
Outer
Dia
Dia
Of Cup
Dia
Of Base
Height
Of Cupel
Depth
Of Cup
Height
Of Ridge
Breadth
Of Ridge
Average
Weight
(Approx.)
No.s Per
Carton
Gross
Weight
(Approx.)
D
D1
D2
H
H1
H2
B/R
(Gm's)
(Kg's)
1
22.0
17.5
16.5
18.4
4.3
5.0
2.30
13.0
1440
19.5
2X
24.0
19.0
19.4
16.3
7.0
5.0
2.50
13.0
1296
17.5
3
26.3
21.3
20.2
17.0
7.0
5.0
2.50
16.5
1080
18.6
4
30.4
25.4
19.9
18.2
7.5
5.0
2.50
20.0
819
17.2
4A
27.0
24.0
20.0
22.0
6.0
7.5
1.50
22.0
900
20.5
5
31.6
26.2
21.9
19.7
7.0
5.0
2.70
24.5
728
18.5
PM
27.0
23.4
26.8
24.0
8.0
...
1.80
27.5
720
20.5
6
36.3
26.4
26.1
21.2
8.5
8.0
4.95
37.5
462
18.0
6A
40.0
32.7
30.0
25.4
12.3
6.0
3.65
47.5
300
15.0
6C
40.2
30.3
20.5
27.5
8.0
9.0
4.95
62.0
300
19.3
6D
38.8
32.8
30.0
30.0
7.8
9.5
3.00
61.5
300
19.2
7
39.5
31.2
29.0
22.0
11.0
6.5
4.15
44.5
300
14.0
7A
39.7
31.2
30.0
28.5
11.8
9.0
4.25
59.0
300
18.5
7A
39.7
31.2
30.0
28.5
11.8
9.0
4.25
59.0
420
25.9
7AL
39.7
31.2
30.0
28.5
12.3
6.0
4.25
55.0
420
24.3
7AS
40.0
31.0
30.0
34.0
12.0
14.0
4.50
72.0
300
22.1
7B
39.7
31.2
30.0
32.0
11.8
12.5
4.25
67.5
300
21.1
7C
40.0
33.0
30.0
30.0
9.5
4.0
3.50
59.0
300
18.4
7F
36.0
29.0
30.0
39.0
10.0
11.5
3.50
73.5
250
19.1
7X
39.7
31.2
30.0
35.0
11.8
15.5
4.25
76.0
300
23.6
SA
40.0
30.2
30.0
25.4
8.7
6.0
4.90
54.5
300
17.1
8
44.3
34.2
34.6
27.1
8.5
9.0
5.05
72.5
240
18.2
8A
45.3
38.0
36.9
35.0
12.5
13.0
3.65
100.5
200
20.8
8AM
45.3
34.0
36.9
35.0
11.5
13.0
5.65
105.5
200
21.8
8B
45.3
34.0
36.9
35.0
14.5
13.0
5.65
101.0
200
20.9
8C
44.8
34.0
35.5
31.0
12.5
11.0
5.40
89.0
240
22.3
8D
45.3
34.2
34.6
27.1
12.5
9.0
5.05
71.0
300
22.2
8F
44.5
34.5
35.0
38.0
13.0
10.5
5.00
100.5
200
20.9
8S
44.0
38.0
34.0
40.0
14.0
13.0
3.00
107.0
180
20.0
8Y
42.0
38.0
42.0
33.0
9.0
...
2.00
100.0
200
20.2
9
51.0
40.0
42.1
29.0
10.5
9.0
5.50
109.0
192
21.7
9C
51.0
42.0
43.0
33.5
12.0
5.5
4.50
126.0
160
20.9
9F
51.0
42.0
41.0
40.0
14.0
11.0
4.50
138.5
128
18.4
10
60.0
52.6
49.7
30.2
11.5
11.0
3.70
148.5
140
21.5
11
56.8
47.8
48.8
44.0
14.8
10.0
4.50
197.0
112
22.7
12
80.2
57.5
62.5
47.0
16.5
11.0
11.35
443.0
45
20.6
14
110.0
80.0
88.0
70.0
24.0
14.0
15.00
1187.0
16
19.7
15
150.0
120.0
128.0
130.0
40.0
25.0
15.00
4725.0
4
20.0
PC
254.0
184.73
203.2
161.64
55.42
32.33
34.65
16000.0
1
16.6
* Approximate
